Food Service & Catering Equipment
For a useful quotation: choose a reference below and send its model code, intended use, quantity, destination, dimensions, material grade by component, and relevant options such as casters, sink layout or lids. Photos and reference sizes are starting points, not proof of stock, material certificates or destination compliance; final construction and documentation are agreed for each order. Send your project details →
Food-service carts

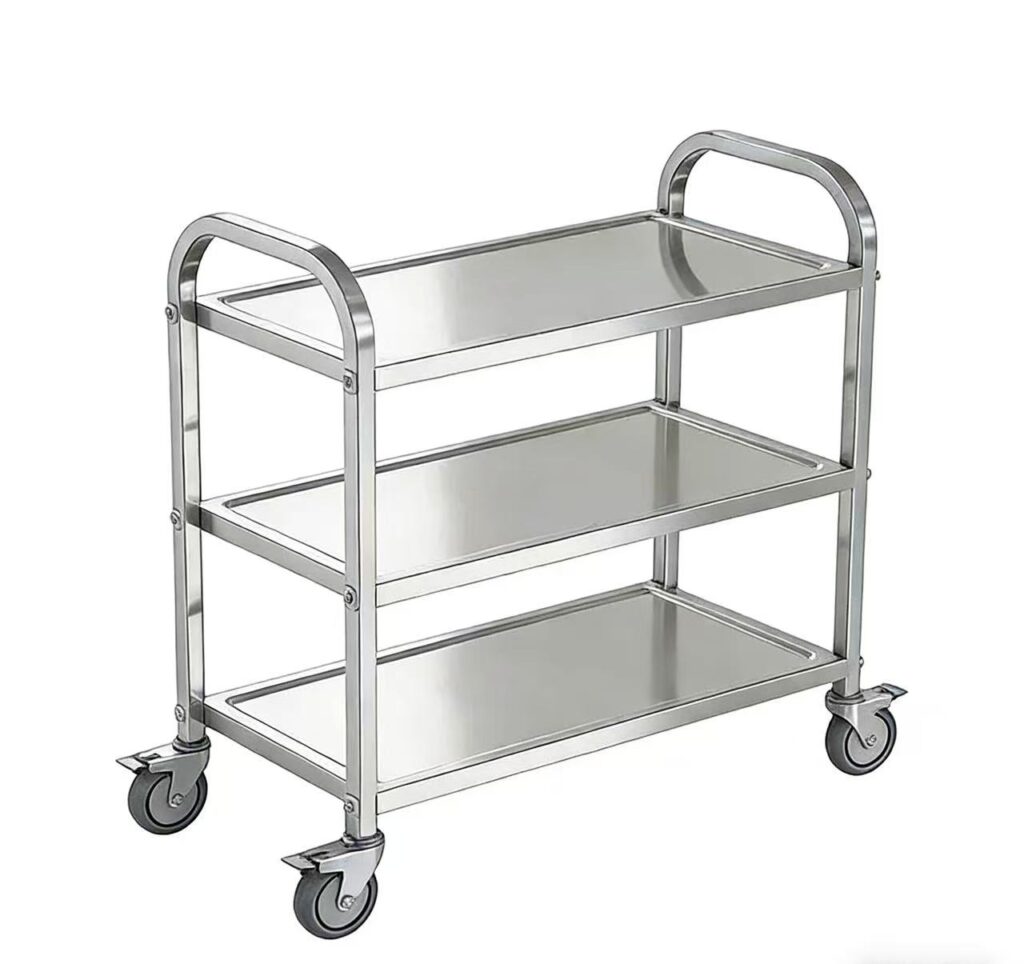

tz-fc001
Small:
Shelf Spacing: 210mm | Inner: 640×345mm | Overall: 750×400×835mm
Medium:
Shelf Spacing: 250mm | Inner: 745×395mm | Overall: 850×450×900mm
Large:
Shelf Spacing: 280mm | Inner: 845×445mm | Overall: 950×500×950mm
(Custom sizes & number of tiers available upon request)
Optional Accessories:
Swivel & brake casters (Standard Configuration: 2 swivel + 2 brake casters)

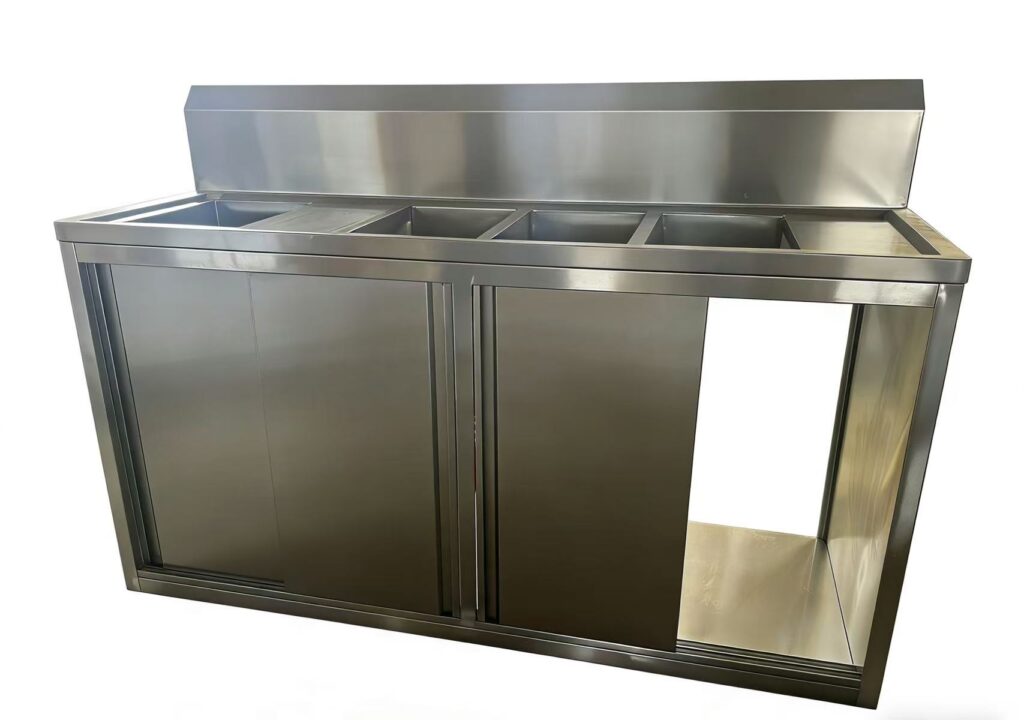

tz-fc002
Material: Stainless steel grade confirmed against the approved order specification
This model is available for drawing-based custom review, including:
– Main cart dimensions (length, width, height)
– Backsplash options (with/without, custom size & style available)
– Food pan compartments (custom quantity, size & spacing)
– Under-counter storage cabinet (with/without internal dividers)
– Cabinet door style options

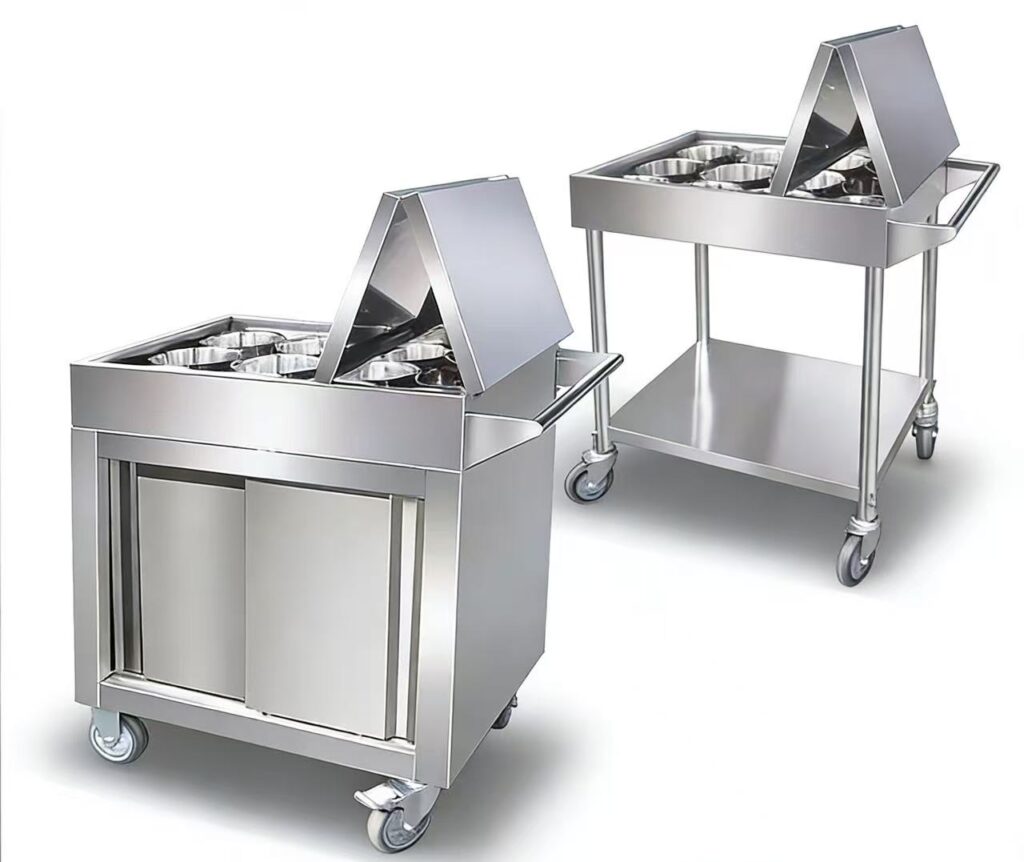

tz-fc003
Material: Stainless steel grade confirmed against the approved order specification
Reference Dimension:
Overall:760×480×800mm | Basin Depth: 120mm
(Custom sizes available upon request)
Style Options:
With / without under-counter storage cabinet (optional)
Cabinet Door Options:
Left-right sliding, up-down sliding, hinged double doors
Optional Accessories: Swivel & brake casters (Standard Configuration: 2 swivel + 2 brake casters)
Trays & GN pans

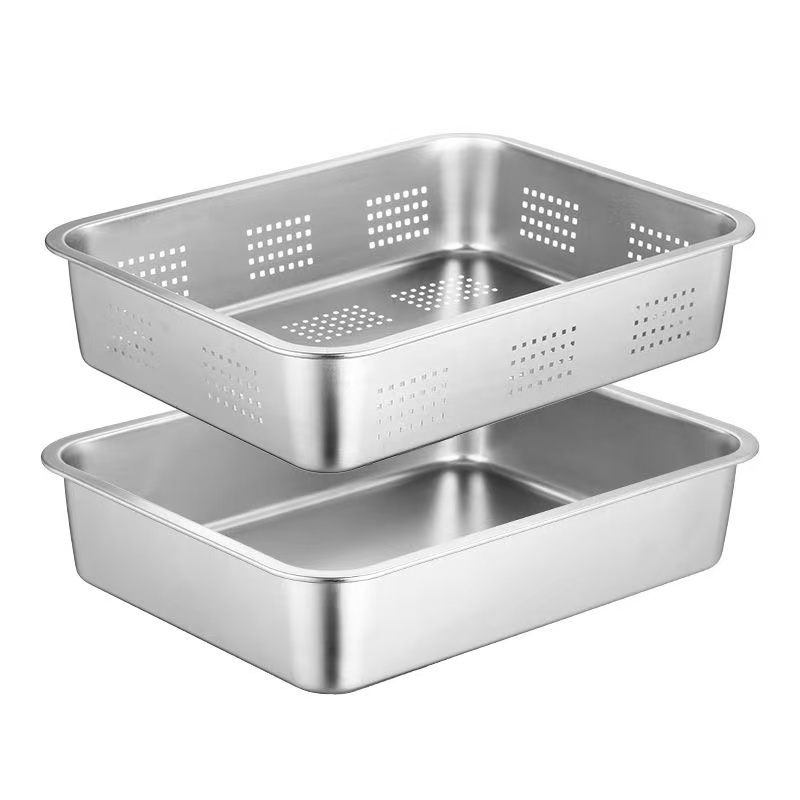

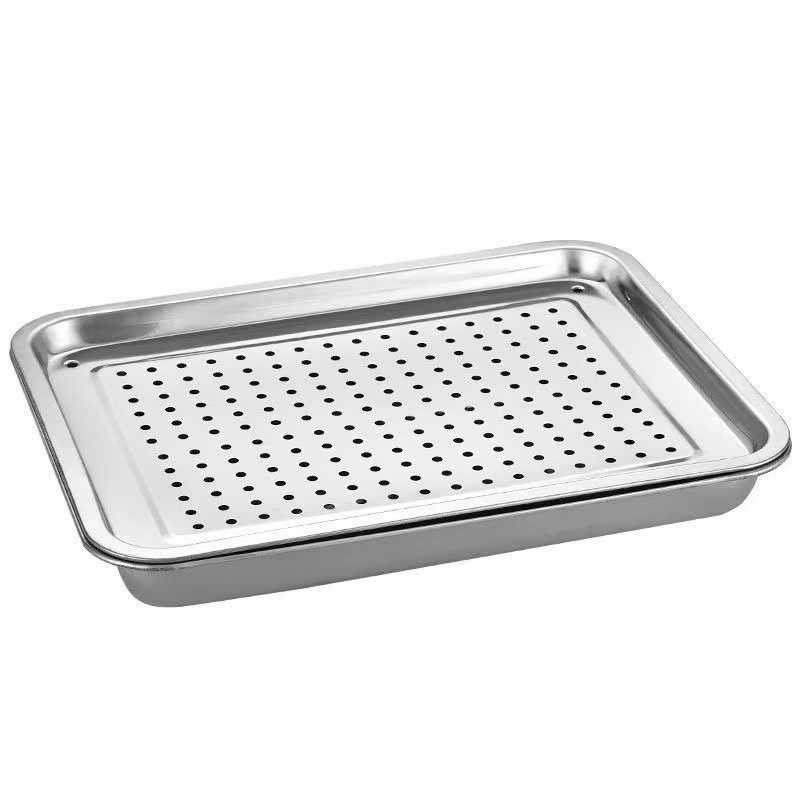

tz-GN001
Material: 304 Stainless Steel
Reference Dimension:
600×400mm | Height: 48mm / 20mm 400×300mm | Height: 48mm / 20mm
(48mm deep tray & 20mm perforated tray available as a set)
(Custom sizes available upon request)
tz-GN002
Material: 304 Stainless Steel
Reference Dimension:
600×400mm | Height: 70/100/150mm 400×300mm | Height: 70/100/150mm
Different height styles can be freely combined as needed.
(Custom sizes available upon request)

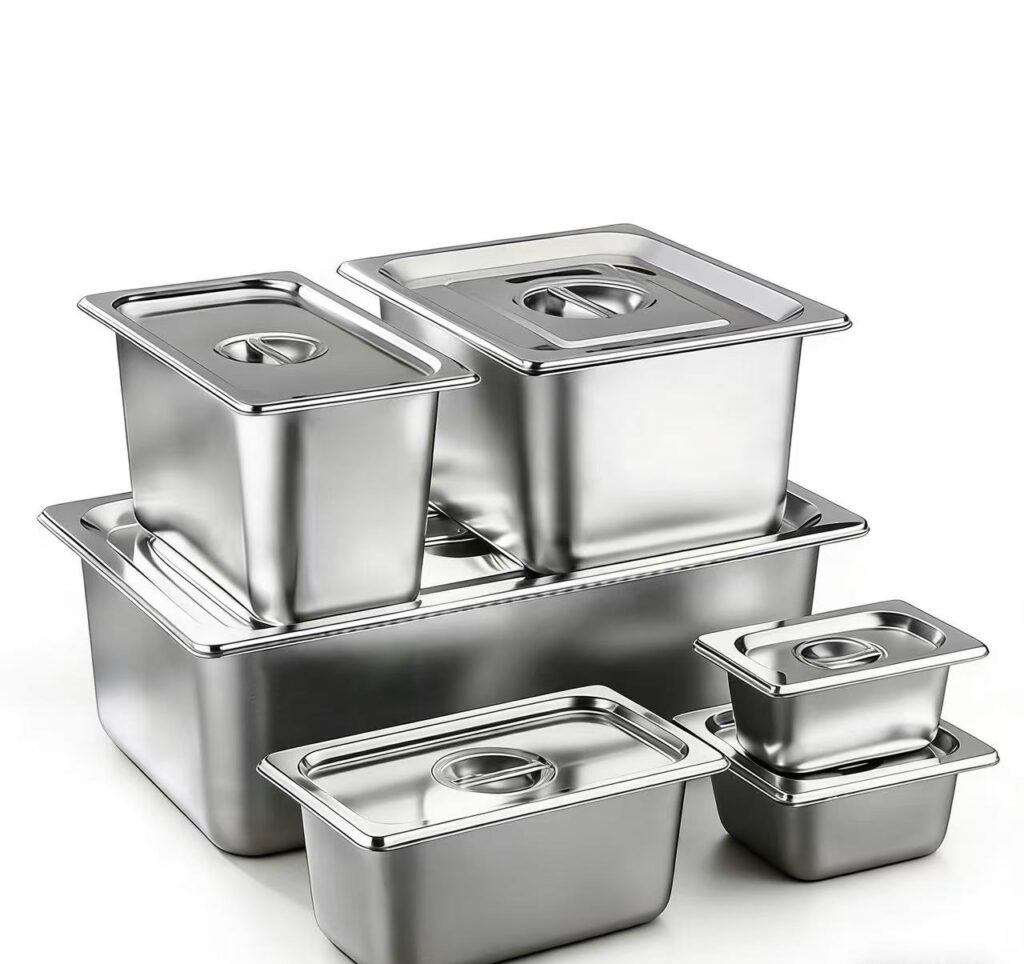

tz-GN003
Material: 304 Stainless Steel
GN Reference Dimensions (EN 631-1):
GN 1/1: 530×325mm
GN 1/2: 325×265mm
GN 1/3: 325×176mm
GN 1/4: 265×162mm
Depth Options:
20mm / 40mm / 65mm / 100mm / 150mm
(Other GN sizes available upon request)
Optional Accessories:
stainless steel lids
Worktable reference
A commercial work table reference for food-service projects.
This is a visual starting point, not a stocked model. Material coverage, dimensions, joints, shelf layout and destination requirements remain subject to project review.
Technical reference points 3 verified external sources
These sources frame buyer-side specification questions. They do not state that a Tianze product is certified or compliant; final requirements are confirmed for each order.
- ISO 15510:2014 — stainless steel chemical compositionsMaterial-grade reference used when the ordered stainless grade is specified and verified.
- Codex Alimentarius — General Principles of Food Hygiene (CXC 1-1969)International food-hygiene context for buyers; destination-country rules and project requirements still need separate review.
- ICC — Incoterms 2020 responsibilities, risks and costsTrade-rule context for defining the named place and allocating freight, risk and costs; not a product specification.
