Products / Cabinets & shelving
Base cabinets, drawer units, wall cabinets and open shelving for distributors and commercial fitout teams. Compare access and storage layouts, then send a drawing, quantity and destination for small-batch or project review.
REFERENCE CATALOGUE

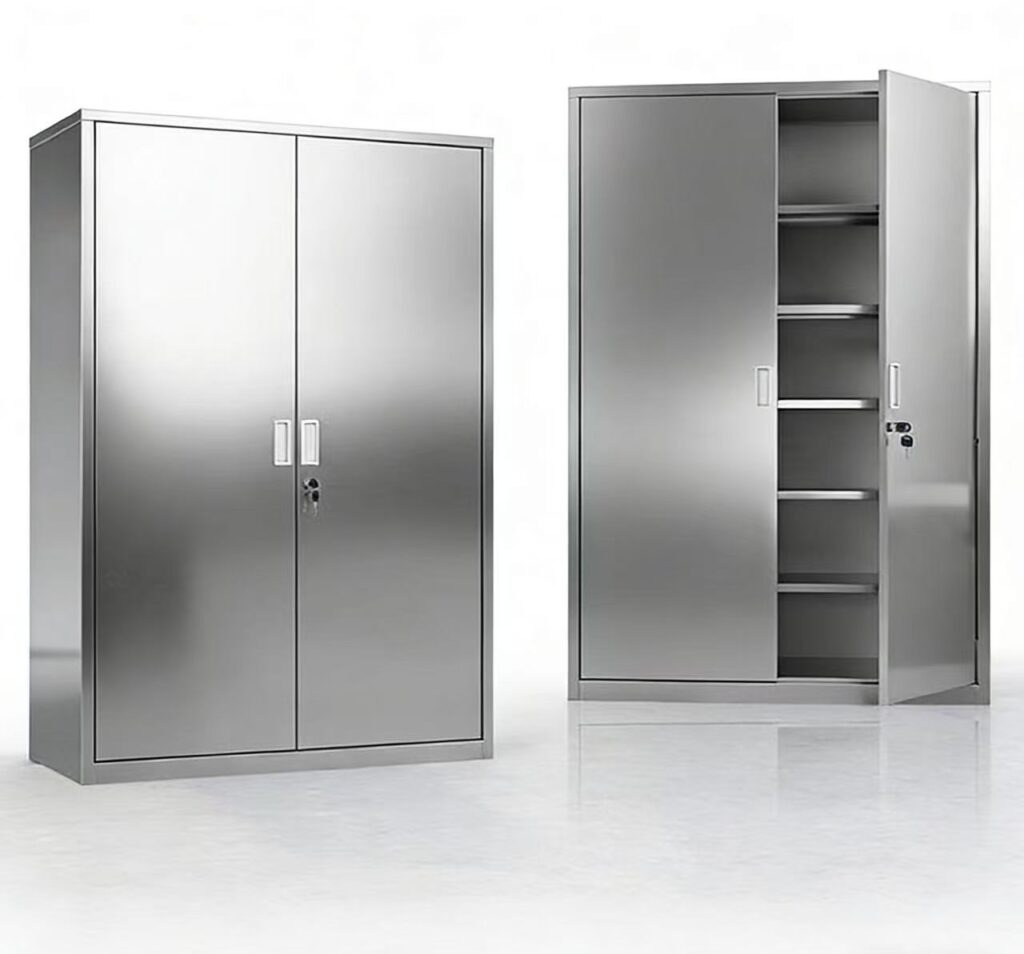

TZ-CB001
TZ-CB002
TZ-CB003

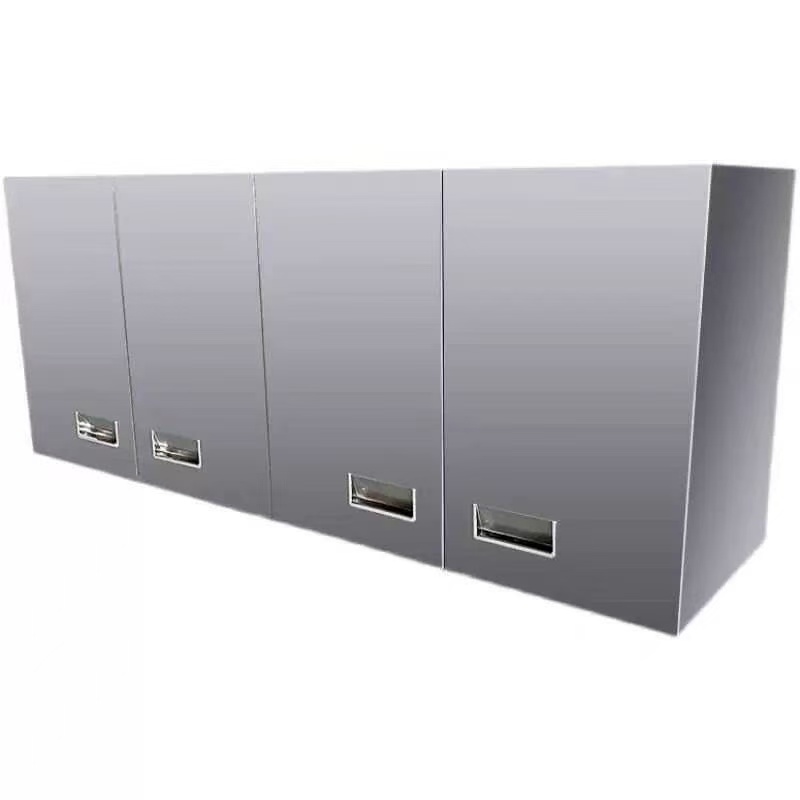

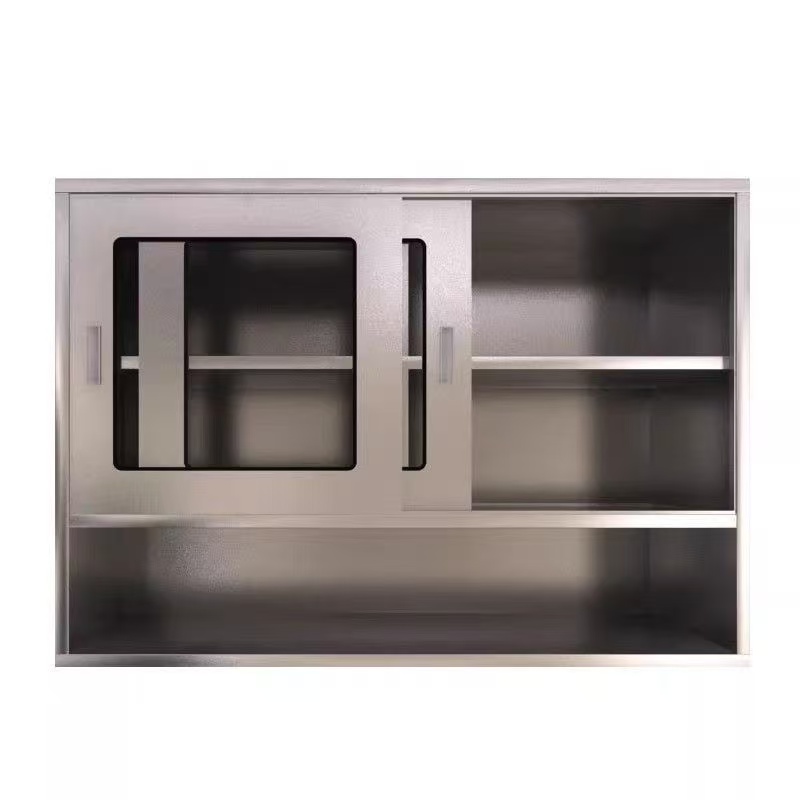

TZ-WCB001
TZ-WCB002
TZ-WCB003

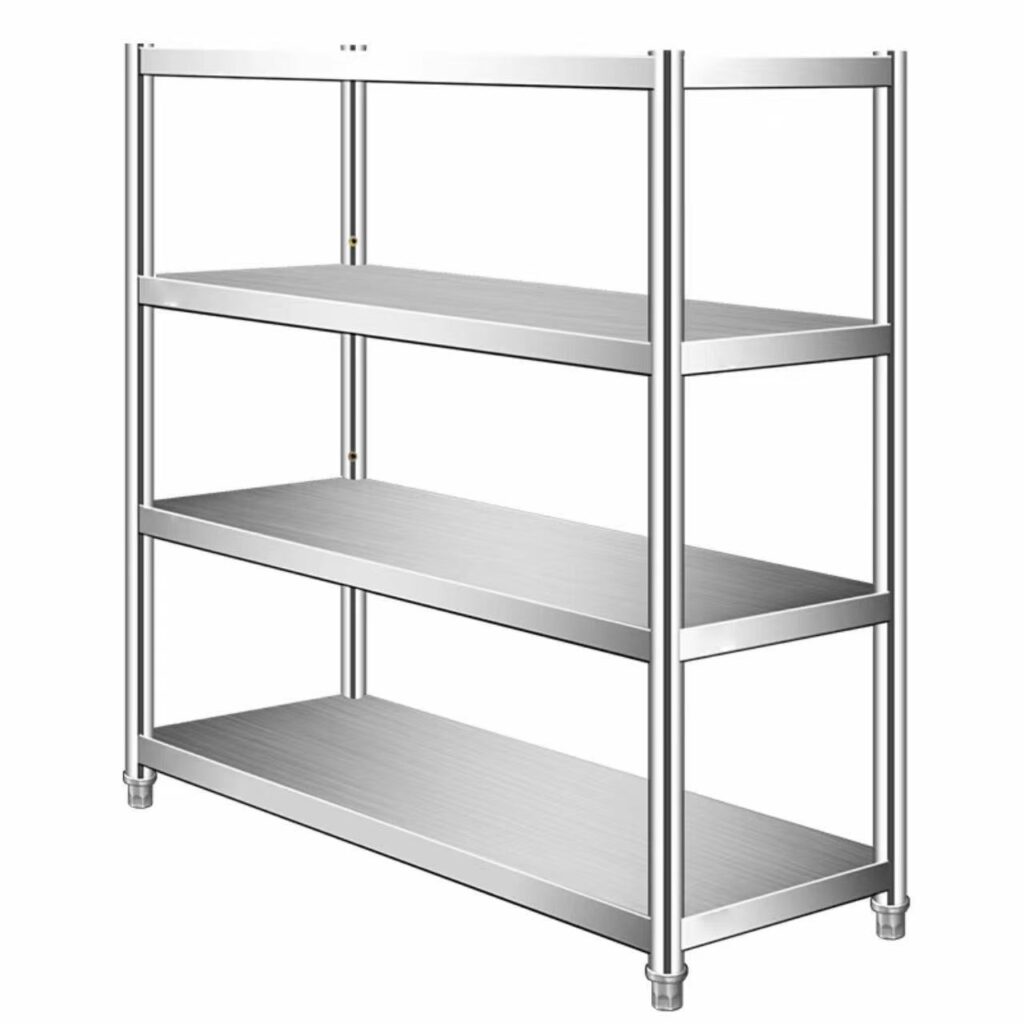

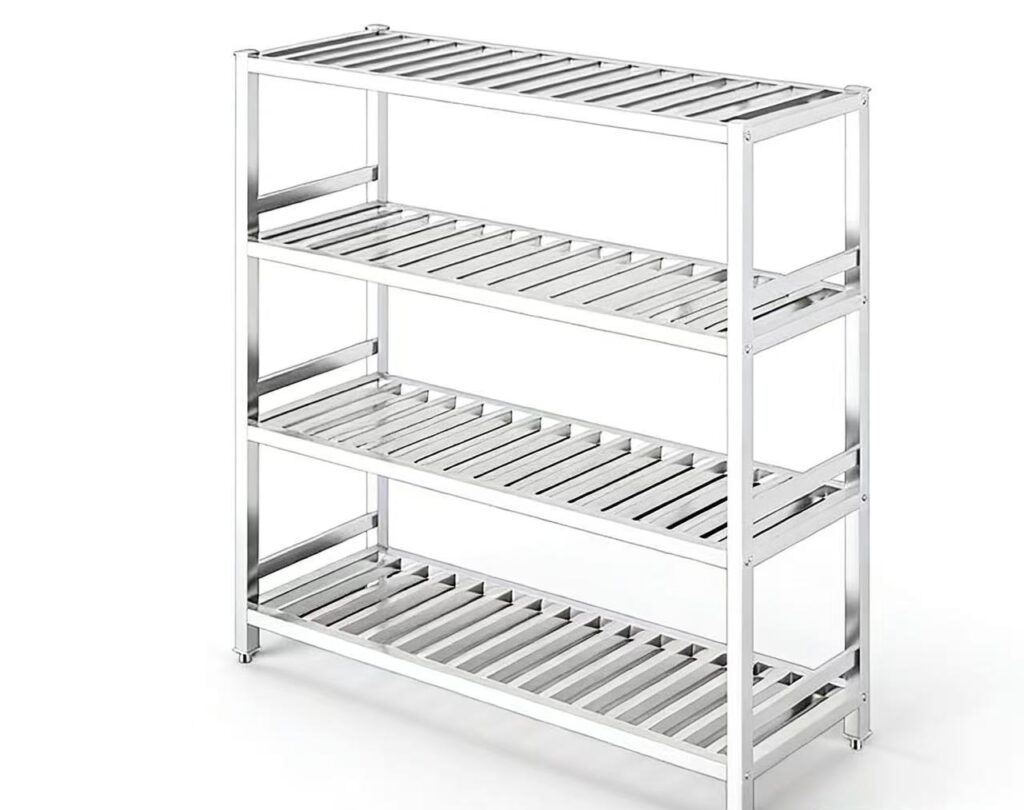

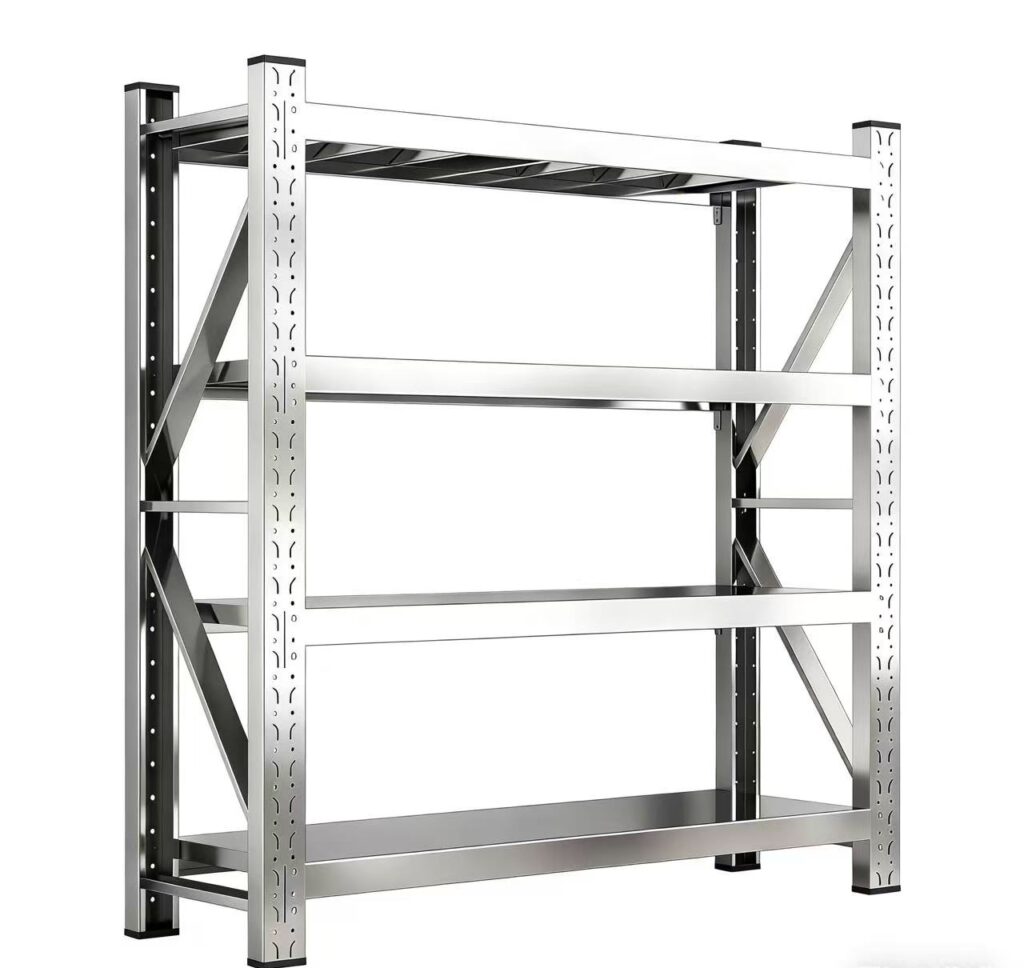

TZ-SH001
TZ-SH002
TZ-SH003
Made-to-order enquiries: include the reference code, required dimensions, quantity and destination. Material, price, lead time and any testing requirements are confirmed separately.
AUTHORISED PARTNER PHOTOGRAPHS
Compare the visible layout, then send a sketch or dimensions for your own project. Cabinet assembly stages and shelving references are shown separately below.
Open-top cabinet body and front layout before completion. Not a finished-order photograph.
Internal panels and cross members shown during assembly. Final construction is recorded in the approved drawing.

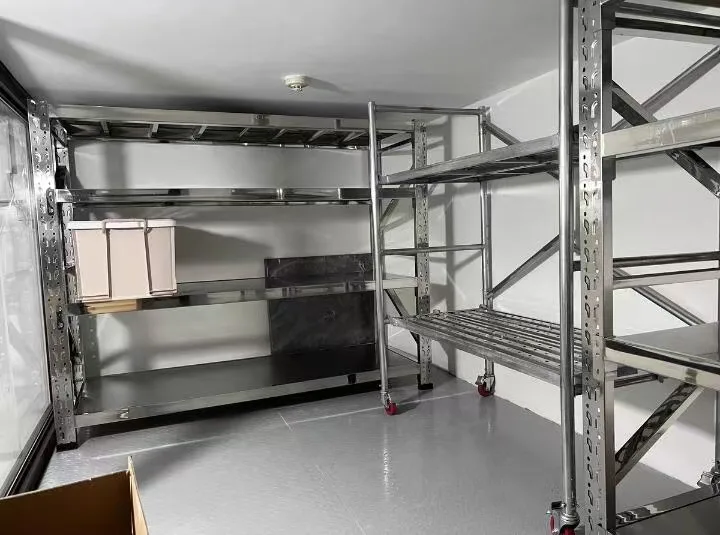

Shelf layout and storage access reference. Shelf spacing, anchoring and load requirements need project review.
BUYER CONFIGURATION GUIDE
Choose the access and storage arrangement first. Send a cabinet schedule or a marked sketch so door movement, drawer space, shelf positions and adjacent equipment can be reviewed together.
Swipe the table to compare all layouts.
| What to review | Door cabinet | Drawer unit | Open shelving |
|---|---|---|---|
| Access arrangement | Choose hinged or sliding access; show the clear opening. | Choose compartment sizes and the extension needed to reach the contents. | Choose shelf spacing for direct access to stored items. |
| Clearance to mark | Door swing or sliding overlap, handles and nearby equipment. | Full opening path, handles and space for the user. | Reach height, loading access, wall or floor fixing and nearby services. |
| Contents to describe | Size and quantity of items, including any tall or awkward items. | Item dimensions, organisation needs and intended loading by drawer. | Item dimensions and intended loading by shelf. |
| Details for the drawing | Front elevation, internal shelf positions, clear width and depth. | Front elevation, internal drawer dimensions, slide and handle requirements. | Shelf levels, overall dimensions, anchoring and cleaning access. |
| Reference models | TZ-CB001 base cabinet; TZ-WCB001–003 wall formats. | TZ-CB002–003 storage and drawer arrangements. | TZ-SH001–003 shelf and rack arrangements. |
Compare the layout first. Dimensions, grade and component coverage, thickness, load requirements, finish and hardware are confirmed in the approved project scope.
A rough sketch is enough for an initial review. Add quantity, intended use, destination city and the drawing revision if available.
Compare with the real reference photographs →List critical dimensions, clearances and moving parts to check. Agree any assembly or load test, its method and acceptance criteria before production.
Specify grade and component coverage, nominal thickness, finish and hardware. Agree which records can be supplied for the ordered batch.
State the delivery route and handling needs. Confirm assembled or separate parts, protection, crate or pallet scope, package sizes, weight and labels.
Agree the drawing revision, inspection checklist, dated photographs, packing list and any assembly instructions to be provided for the order.
Include your destination-market and site requirements in the RFQ. Price, lead time, freight and local installation follow the written quotation and agreed responsibilities.
Price depends on the approved dimensions, material and component coverage, sheet thickness, door or drawer arrangement, hardware, finish, quantity and packing scope. For a mixed cabinet schedule, identify each unit and ask for its specification and quantity to be shown separately. No catalogue reference establishes a fixed project price.
Yes. Give every cabinet a unit reference and list its quantity, dimensions with units, door or drawer layout, internal shelves and service openings. Attach the plan or elevation and drawing revision if available. Tianze reviews the proposed scope with manufacturing partners before confirming feasibility, commercial quantities and production timing.
Start with the available access space and the items to be stored. Mark door swing or sliding access, drawer opening clearance and required internal dimensions on the sketch. The final layout and hardware are reviewed against the intended use and approved drawing.
State the delivery route and handling constraints. Agree whether the unit ships assembled or in separate parts, the protection and crate or pallet scope, package labels, package dimensions and weight, and any assembly instructions. Ask which dated packing photographs and documents will be supplied for your order.
Yes. List the dimensions, material records, moving-part checks and any buyer-specified load test you need. Agree the method, acceptance criteria, evidence, timing and responsibility before production. A reference photograph does not establish a test result or a certified rating.
Custom sizes
A sketch or rough width, depth and height is enough to start. Include the quantity and intended use.
Email drawings to info@tzstainless.com
Photographs are authorised manufacturing-partner references. They do not establish grade, certification, current stock or a specific customer's order.
This form accepts text only. Send attachments by email.
Drawings, materials, custom dimensions and quotation scope.
Yes. Start with a reference photo or rough width, depth and height, together with approximate quantity, intended use and delivery city. Tianze will identify missing technical inputs before quotation; final specifications still require written confirmation.
Send a drawing, cabinet schedule or rough overall dimensions together with unit type, quantity, intended application and delivery city. Tianze will identify any missing technical inputs before quotation.
The current project focus is 304 stainless steel. Final grade, thickness, finish and construction details are recorded in the approved drawing or written order scope.
No. They are reference configurations only. Final width, depth, height, shelf spacing, door arrangement and drawer layout are confirmed for each order.
Only the Incoterm and inclusions stated in the written quotation apply. International freight, destination charges, tax and local installation are not included unless they are expressly listed.
These sources frame buyer-side specification questions. They do not state that a Tianze product is certified or compliant; final requirements are confirmed for each order.
