DRAWING HANDOVER GUIDE
What drawings should you provide when sourcing stainless cabinets from China?
A finished production drawing is not required for the first conversation. A room plan, cabinet schedule, marked photo or rough sketch can start the review—but the order must eventually be controlled by approved dimensions, interfaces and a written revision.
BUYER DECISION
The useful drawing is the one that closes a purchasing decision.
Send what is known and label unknown items TBC. Tianze can identify missing dimensions and convert a buyer brief into a reviewable supply scope, but local site verification, professional design and regulatory approval remain with the buyer and its appointed project team unless expressly agreed otherwise.
AUTHORISED PRODUCTION REFERENCES
Real stainless product and workshop photographs
These authorised manufacturing-partner photographs show relevant construction and configuration details. They do not prove the material, thickness, certification or specification of a future order.

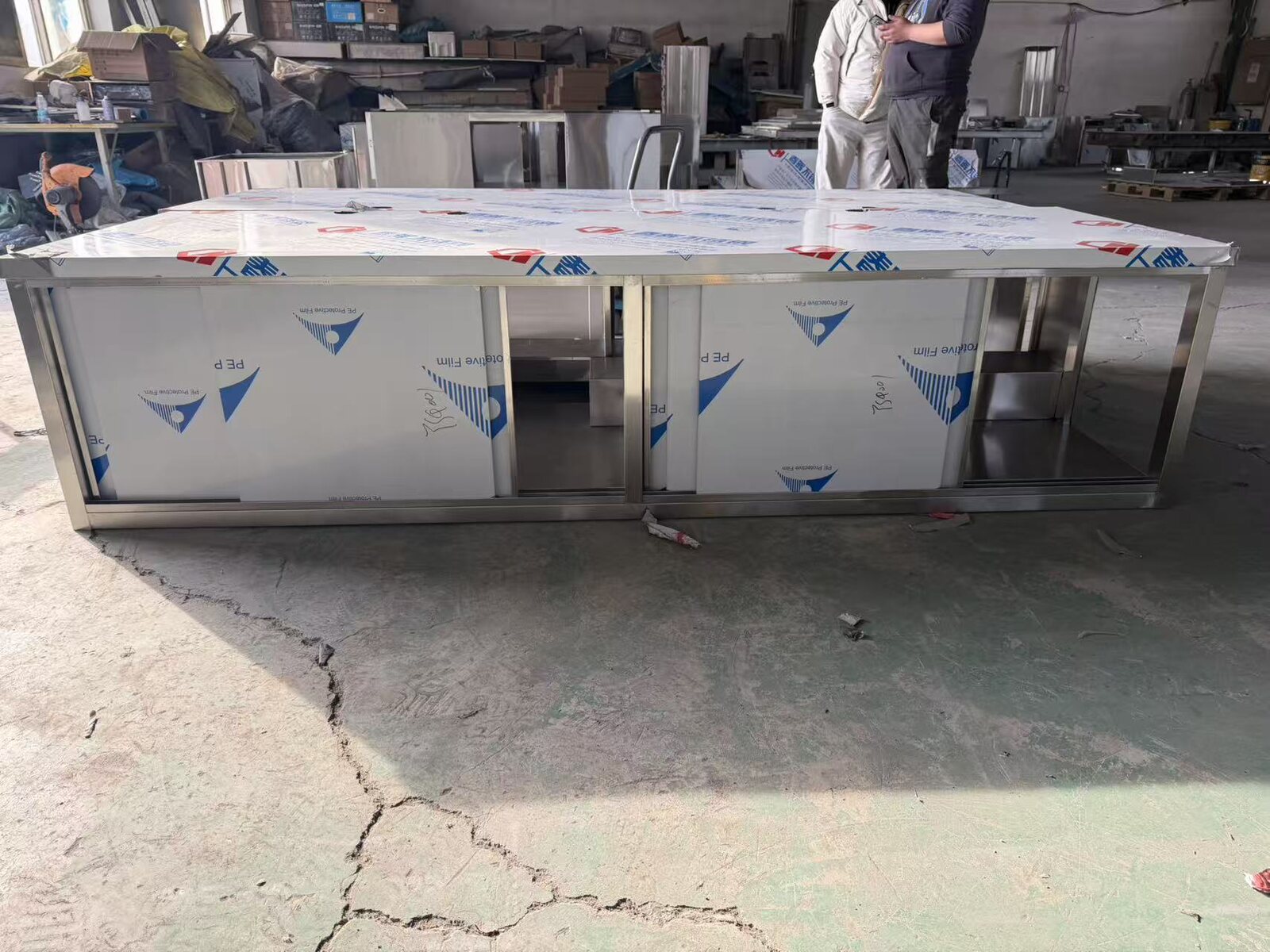

Drawing-controlled cabinet assembly
The approved revision must connect overall dimensions, openings, shelves, doors, hardware and interfaces.

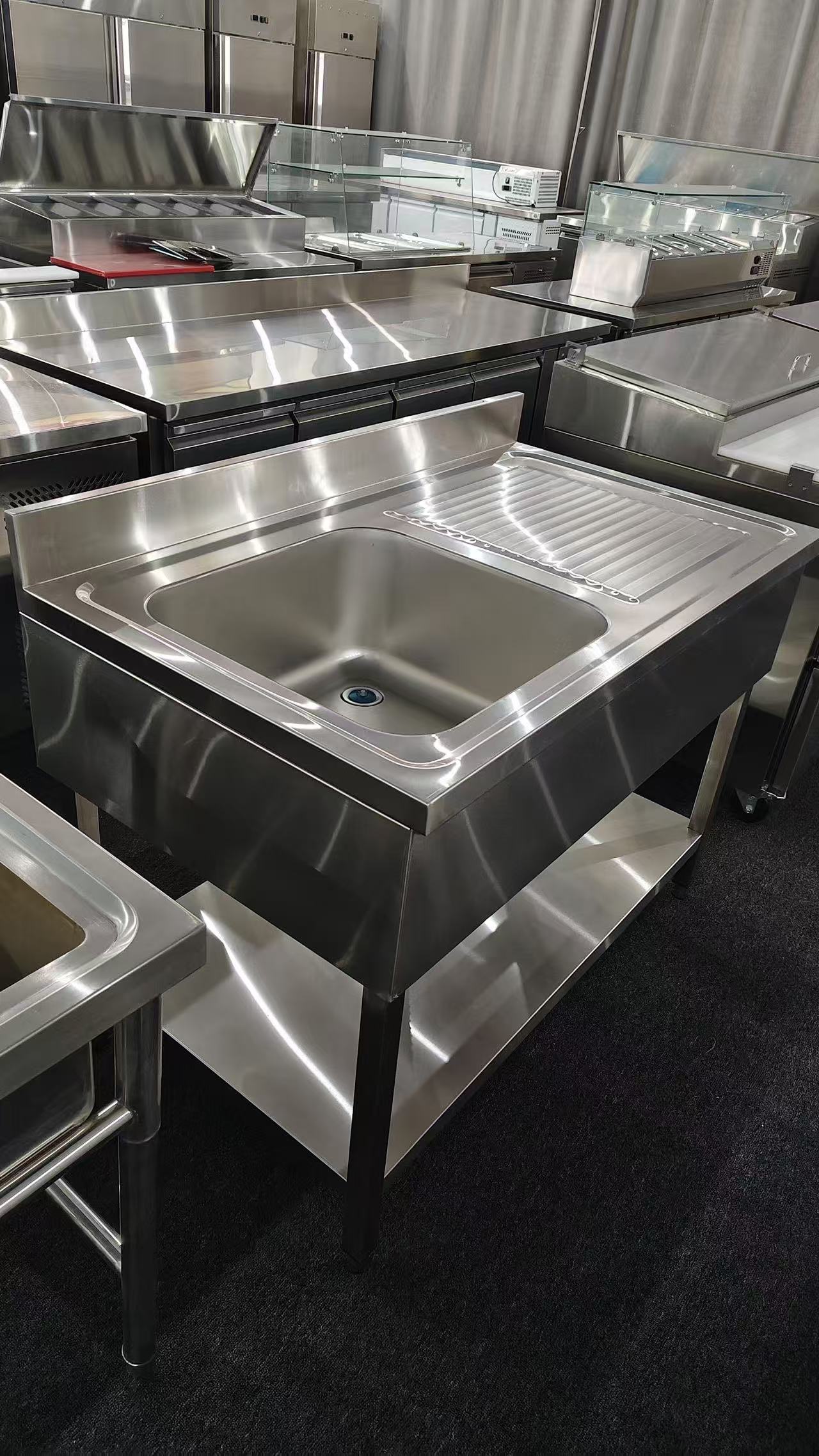

Show sinks and service interfaces
Bowl location, waste, tap, splashback and local plumbing responsibility need explicit drawing notes.
SPECIFICATION TABLE
What the buyer and supplier need to define
Use this table as a purchasing brief. Final values and inclusions are confirmed only in the approved drawing, written specification and accepted quotation.
Room planWall lengths, corners, columns, doors, access route and adjoining equipment
Cabinet scheduleItem number, type, quantity, overall W × D × H and repeated or mirrored units
Front elevationDoor and drawer layout, handles, locks, shelf positions, plinth, legs or castors
Section/detailBenchtop edges, splashback, internal construction, reinforcement and critical clearances
Service drawingSink, waste, tap, plumbing, electrical and equipment penetrations with datum dimensions
Material notesGrade, component coverage, nominal thickness, finish and required evidence—or mark TBC
Revision controlDrawing number, revision, date, approval status and written record of later changes
Packing constraintsMaximum package, lifting points, crate/pallet requirement and site access limit
PROCUREMENT QUESTIONS
Questions to close before approval
These questions expose scope gaps that can change price, fabrication, packing or site responsibility.
Which document wins if information conflicts?
Set a clear drawing, specification and quotation revision hierarchy before production approval.
Who owns each interface?
Identify supplier, plumber, electrician, installer and equipment-provider boundaries.
How will later changes be approved?
Record cost, timing and drawing impact before accepting a revised production scope.
QUOTATION INPUTS
Send this information for a useful quotation
Known information can be sent now. Mark unresolved items TBC instead of allowing the supplier to guess.
- Company, project and intended use
- Room plan, sketch, cabinet schedule or marked photographs
- Known dimensions and site-verified datum points
- Unit types, door/drawer/shelf configuration and quantity
- Material, finish, hardware and evidence requirements
- Plumbing, electrical and adjacent-equipment interfaces
- Destination, access and packing restrictions
- Drawing revision plus a list of all TBC items
BUYER QUESTIONS
Can I request a quotation without CAD drawings?
Yes. A first review can start from a sketch, cabinet schedule, marked photograph or rough overall dimensions. Final production still requires an approved drawing or written specification.
Which file formats can be reviewed?
PDF drawings and clearly marked images are suitable for the first review. Native CAD or other editable files can be discussed if revision control and file compatibility are clear.
Who checks the site dimensions?
The buyer and its appointed site or fitout team should verify site dimensions unless a different responsibility is expressly agreed in writing. Tianze does not assume local measurement or installation.
How should plumbing openings be shown?
Show the opening size, centreline or datum location, related bowl or equipment, and which party supplies each connected component.
Can Tianze create a drawing from a reference photo?
Tianze can review whether a drawing can be developed from known dimensions and reference photos. Feasibility, design responsibility, unresolved details and any cost are confirmed before proceeding.
